⚠️ CRITICAL SAFETY WARNING (Read First)

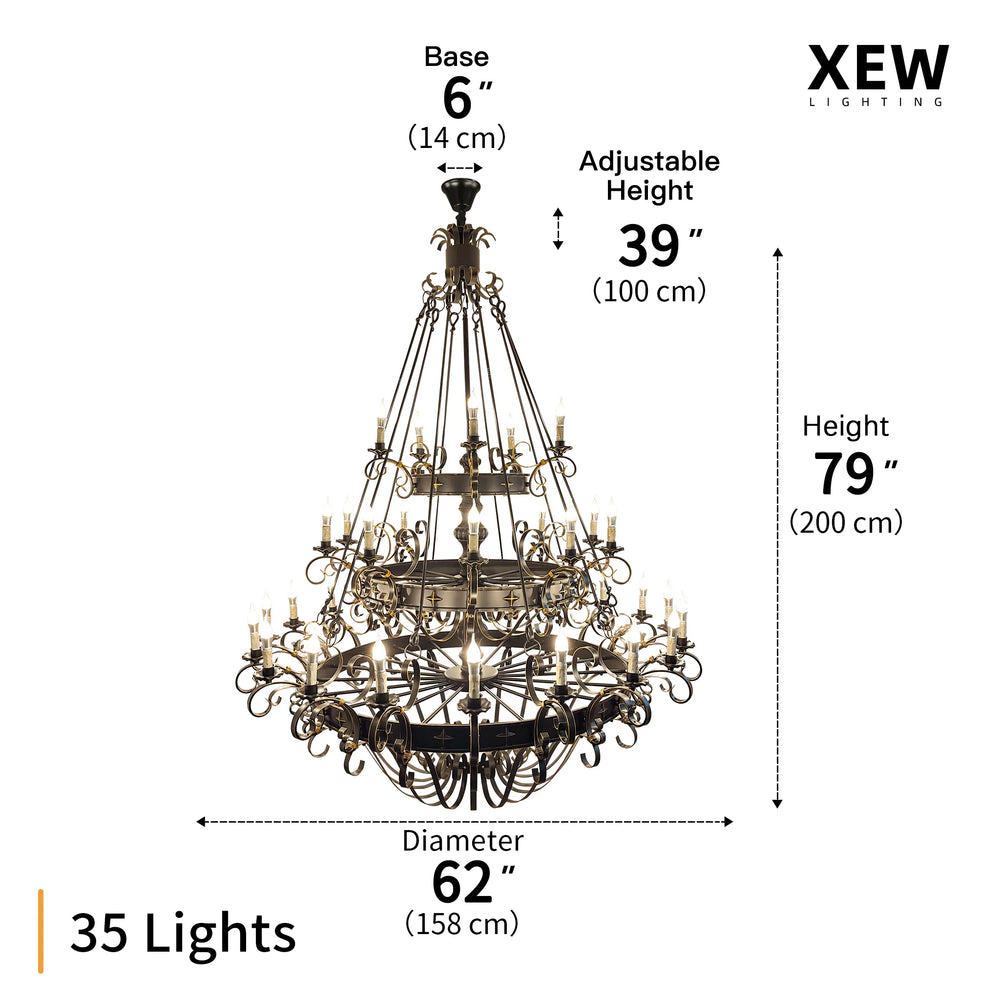

- Heavy Load: This fixture is significantly heavy and large (up to 104" Height). A standard plastic junction box is NOT sufficient. You must verify your ceiling box is rated for heavy fixtures (or use a Fan Brace/Structural Beam).
- Team Lift Required: Do NOT attempt to install this alone. We recommend a team of 3-4 people and professional scaffolding/platform ladders.
📺 Watch the Video Tutorial
Given the complexity of the 35/48-arm wiring, watching the video is highly recommended.
- Search on YouTube: XEWLIGHTING
- Note: Detailed printed diagrams are included in the crate.
🛠️ Step-by-Step Installation
1. Turn Off Power
Safety First! Switch off the main power at your circuit breaker panel.
2. Ground Assembly (The "Skeleton")
- Spacious Area: Clear a large area on the floor (on a carpet or the foam from the crate) to lay out the parts.
- Build the Core: Assemble the central rod and the multiple ring tiers first according to the manual.
- Attach Arms: Install the curved metal arms onto the rings one by one. Secure them tightly with the provided nuts.
- Internal Wiring: Connect the wires from each arm to the central main line using the wire connectors. Tip: Labeling wires by tier can help keep things organized.
3. Install Heavy-Duty Bracket
- Secure the mounting bracket directly to a structural ceiling joist or a heavy-duty metal electrical box.
- Safety Check: Pull down firmly on the bracket to ensure it can support the full weight of the fixture.
4. The "Team Lift" (Crucial Step)
- Prepare the Chain: Adjust the hanging chain to your desired height before lifting.
- Lift: Have 2-3 people carefully lift the fully assembled fixture while the electrician stands on the scaffold/ladder to hook it onto the ceiling bracket immediately.
- Note: Ensure the arms do not bang against the ladder or walls during the lift.
5. Final Connection & Bulbs
- Connect Wires: Connect Main Line (Black/L), Neutral (White/N), and Ground (Green/E).
- Install Bulbs: Insert the [35 or 48] required bulbs (E14/Candelabra Base).
- Adjust Arms: After hanging, some arms might be slightly misaligned. Gently bend them back into perfect symmetry.
❓ Support
Missing a Part? With over 30+ arms, sometimes a small screw or part can be misplaced. Contact us at Info@xewlighting.com, and we will ship replacements immediately.
